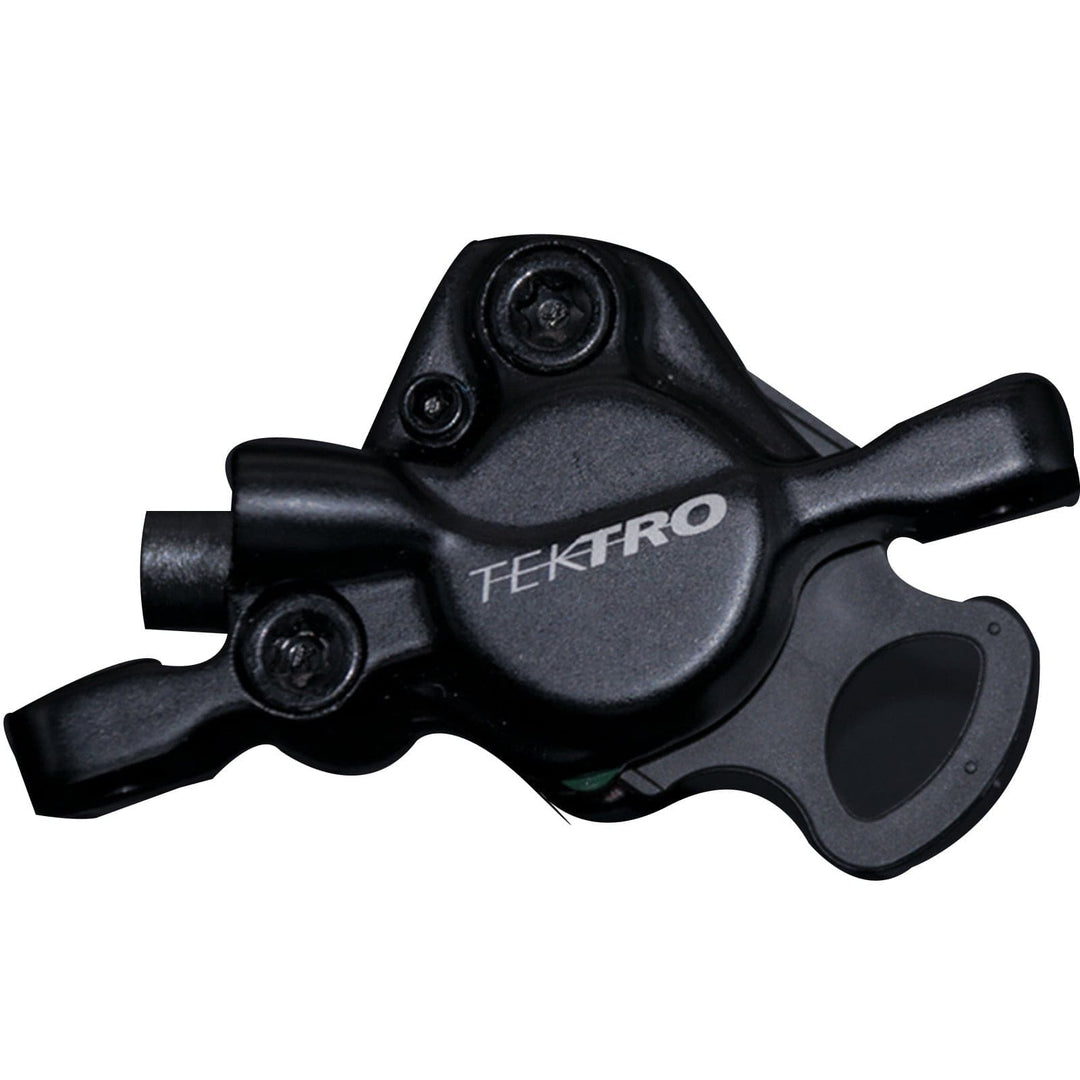

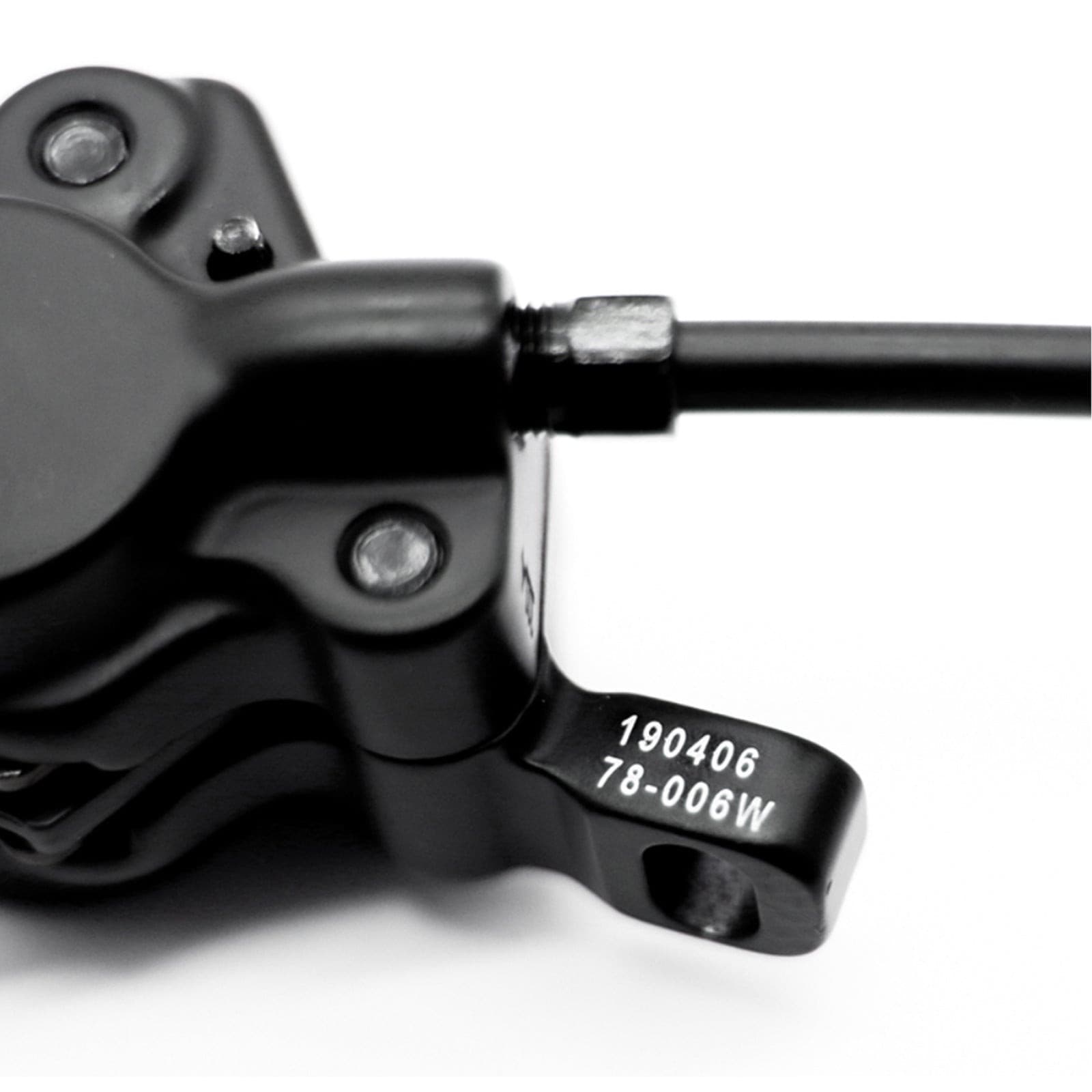

Hydraulic Disc Brake System HD-M285
- Hybrid XR (Pro) Medium
- Hybrid XR (Pro) Large
- Hybrid ST (Pro) Medium
Bike weight: 54 lbs For riders: 5'3" - 6'5"
| A. Seat Tube Length | 18" |
| B. Standover Height | 27” |
| C. Reach | 20" |
| D. Head Tube Length | 9” |
| E. Head Tube Angle | 69° |
| F. Headlebar Height | 48” |
| G. Wheelbase | 43.3” |
| H. Total Length | 70.8“ |
| I. Bottom Bracket Ht. | 11” |
| J. Chainstay Length | 18” |
| K.Minimum Seat Height | 32” |
| L.Maximum Seat Height | 40” |
Bike weight: 55 lbs For riders: 5'5" - 6'7"
| A. Seat Tube Length | 18" |
| B. Standover Height | 28” |
| C. Reach | 20" |
| D. Head Tube Length | 9” |
| E. Head Tube Angle | 69° |
| F. Headlebar Height | 48” |
| G. Wheelbase | 43.7” |
| H. Total Length | 71.2“ |
| I. Bottom Bracket Ht. | 11” |
| J. Chainstay Length | 18” |
| K.Minimum Seat Height | 32” |
| L.Maximum Seat Height | 40” |
Bike weight: 53 lbs For riders: 5' - 6'3"
| A. Seat Tube Length | 18" |
| B. Standover Height | 18.5" |
| C. Reach | 20" |
| D. Head Tube Length | 6.5" |
| E. Head Tube Angle | 71° |
| F. Headlebar Height | 44" |
| G. Wheelbase | 43” |
| H. Total Length | 70.5“ |
| I. Bottom Bracket Ht. | 11” |
| J. Chainstay Length | 18” |
| K.Minimum Seat Height | 28.5” |
| L.Maximum Seat Height | 40” |
Assembly Manual & Video

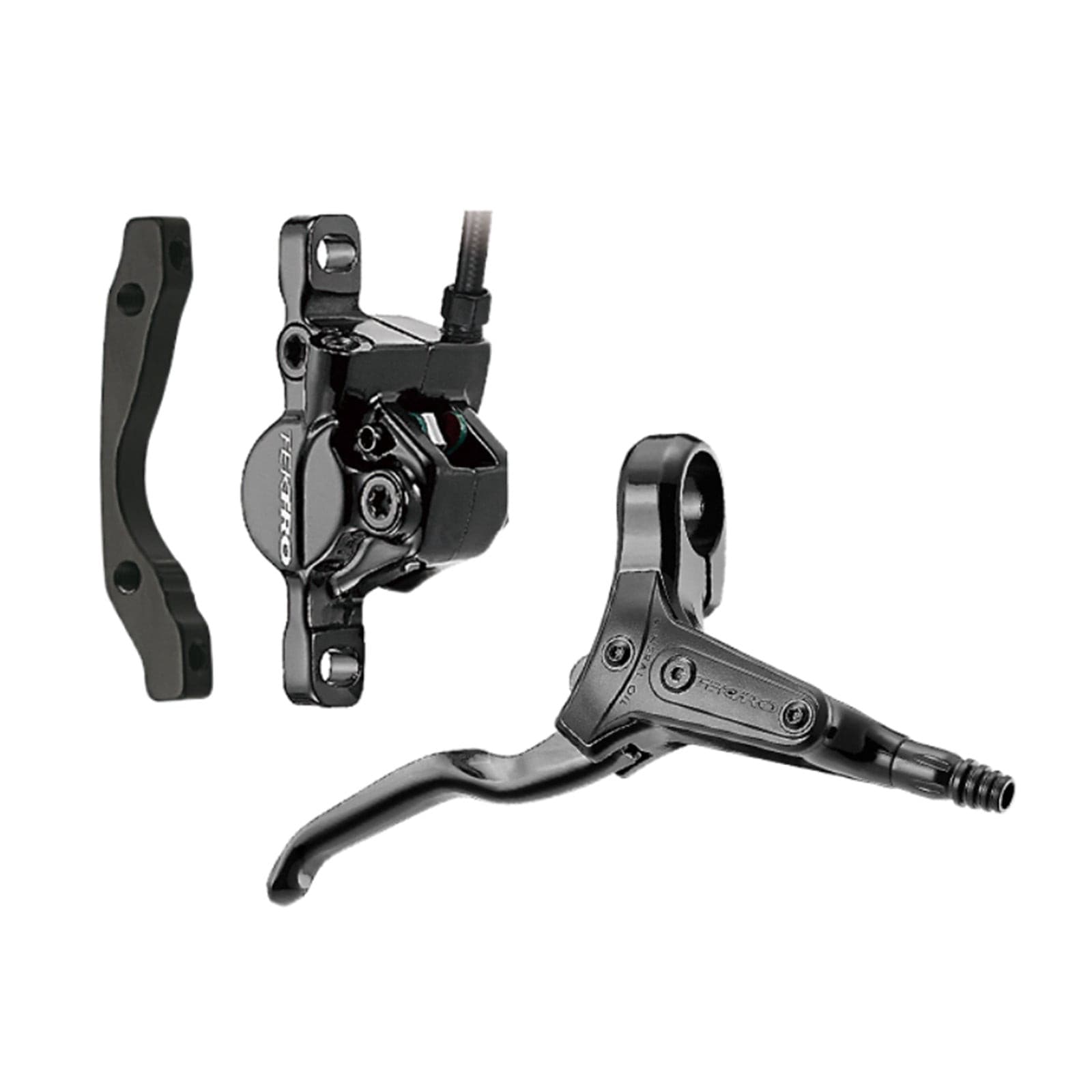

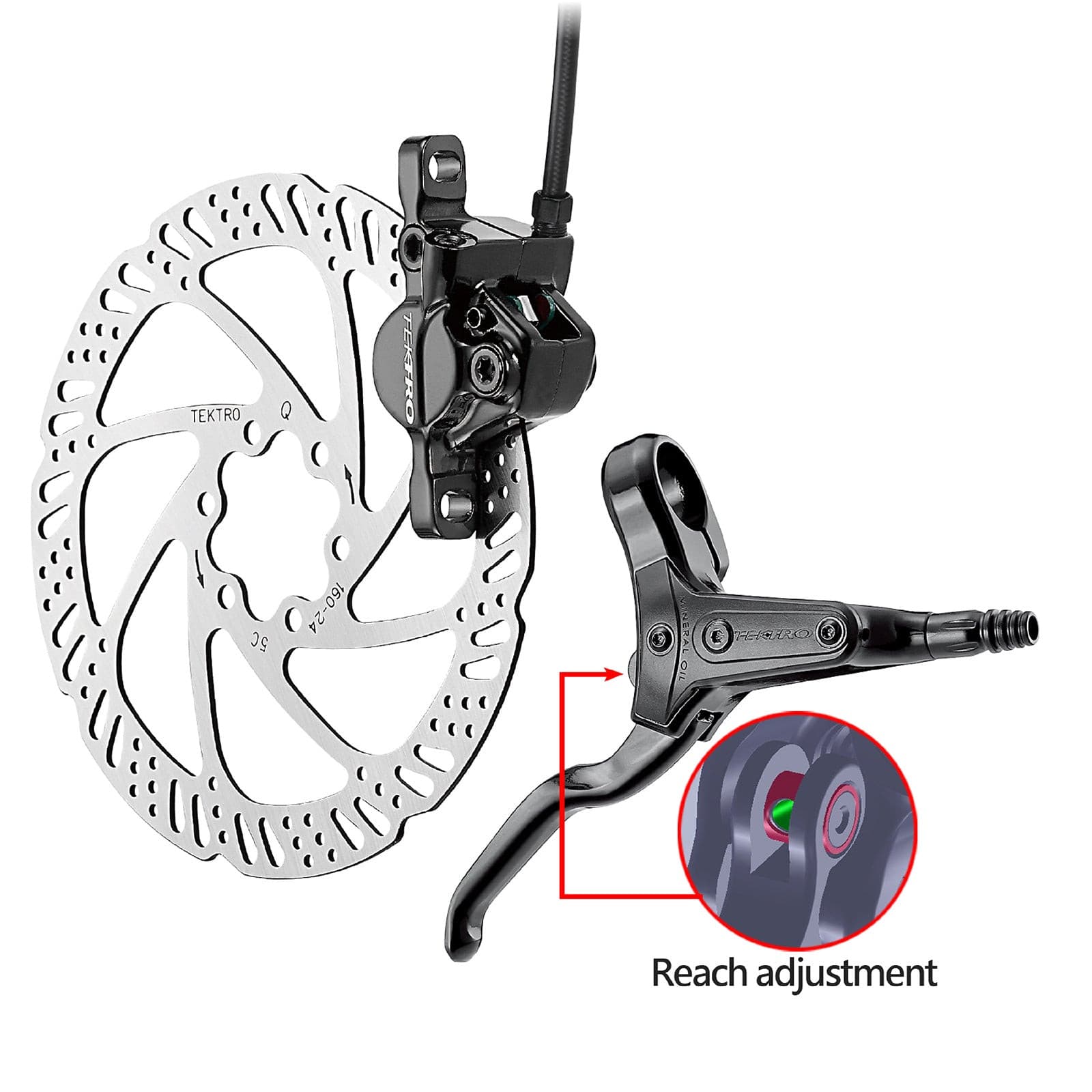

MTB - Hydraulic Disc Brake System
◆ Open system, Dual piston
◆ Easy installation, adjustment and maintenance.
Brand that work with Favorite
